MAZAK QTN 200MSY - BARFEEDER - COOLANT THRU
CNC LATHES MULTI AXIS

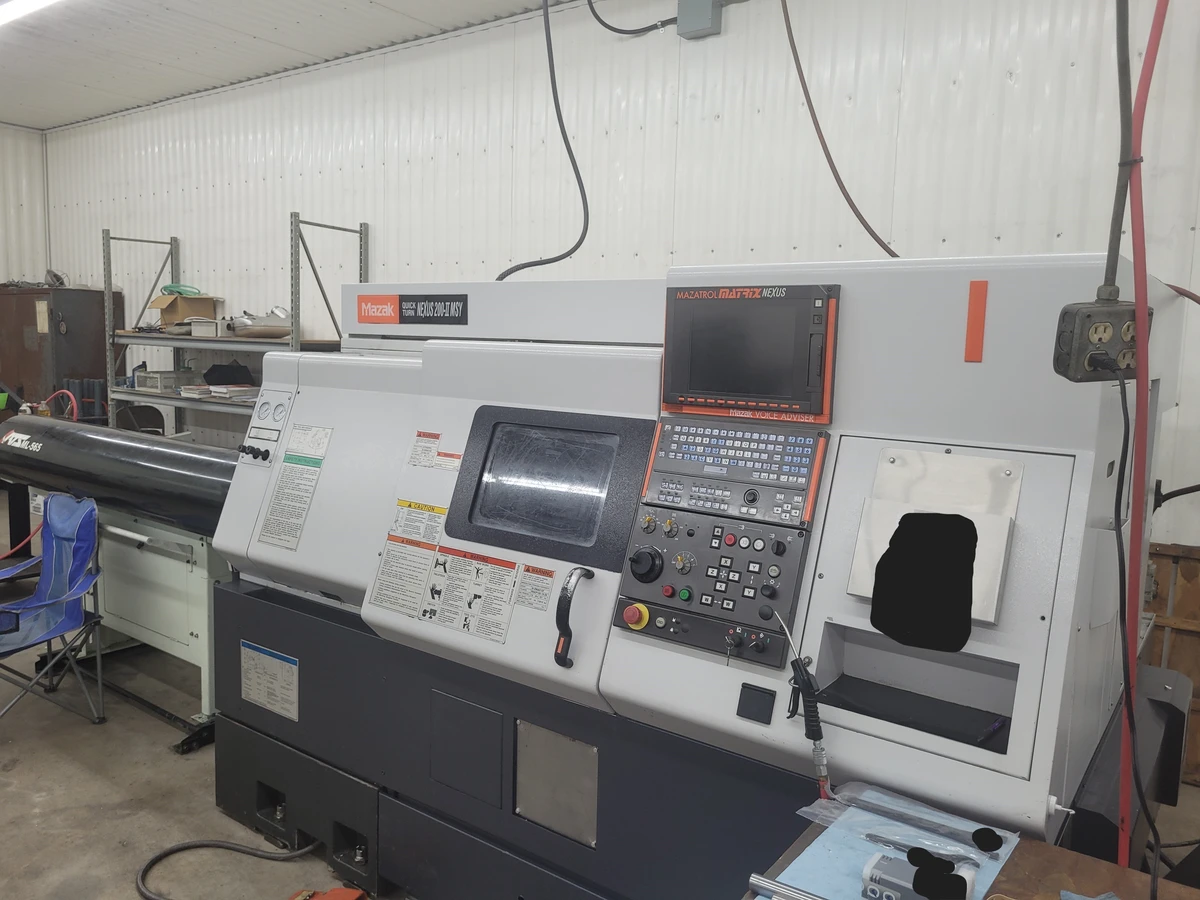

THIS 2007 QTN 200MSY HAS A MATRIX NEXUS CONTROL, BAR FEEDER, 213 COOLANT THRU SPINDLE, MILLING-SPINDLE SYNCHRONOUS TAPPING, C-AXIS 0.0001 DEGREE (1ST SPINDLE)
| Maximum Swing | 26.5" |
| Max Turning Diameter | 21.27" |
| Main Spindle Bore/Max Bar Capacity | 3"/2.04" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Swing Over Cross Slide | 14" |
| Maximum Cutting Length | 14.75" |
| X-Axis Travel (X1, X2, X3) | 9.055 |
| Z-Axis Travel (Z1, Z2, Z3) | 22.63 |
| Y-Axis Travel (Y1, Y2, Y3) | 4″ (+/- 2.0″) |
| C-Axis Indexing (1, 2) | .001 /.001 DEGREE |
| W-Axis Travel Sub Spindle | 23 in |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3" |
| Main Spindle Maximum Bar Work | 2.04" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35 |
| Sub Spindle/2nd Spindle Chuck Size | 0 |
| Sub Spindle/2nd Spindle Bore Size | 2.0 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 15 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4500 |
| Turret Rotary Tool Horse Power 1, 2 | 7.5 |
| Bar Feed | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Control | CNC (MAZATROL MATRIX NEXUS) |
MAZATROL MATRIX CONTROL
12.1" COLOR LCD
USB I/F - 2-PORT
LAN PORT
USER MACRO - COMMON VARIABLES: 600 PAIRS
MAZAK TAPPING/ BORING TORNADO/ EIA HELICAL TAP CYCLE
EIA/ ISO INPUT FUNCTION
SEQUENCE NUMBER COMPARISON STOP FUNCTION
CYLINDRICAL & POLAR COORDINATE
ABSOLUTE POSITIONING SYS (N/A WITH S/F)
AUTOMATIC TOOL EYE
COMPLETE COOLANT SYSTEM - 25PSI/ 8 GPM
CHUCK AI BLAST - SECOND SPINDLE
OPERATOR DOOR INTERLOCK WITH LOCK SWITCH
HYDRAULIC PRESSURE INTERLOCK
Y-AXIS CONTROL
MILLING-SPINDLE SYNCHRONOUS TAPPINGC-AXIS 0.0001 DEGREE INC - 1ST SPINDLE
8" THRU-HOLE CHUCK - 2.047"
SPINDLE BORE - 3.0"
AUTO CHUCK JAWS OPEN/ CLOSE - 1ST & 2ND SPINDLE
CHUCK OPEN/ CLOSE CONFIRM - 1ST & 2ND SPINDLE
6" CHUCK B-206 SECOND SPINDLE NON-THRU BAR & CYLINDER
CHIP CONVEYOR - SIDE DISPOSAL
213 PSI HIGH-POWER COOLANT THRU
