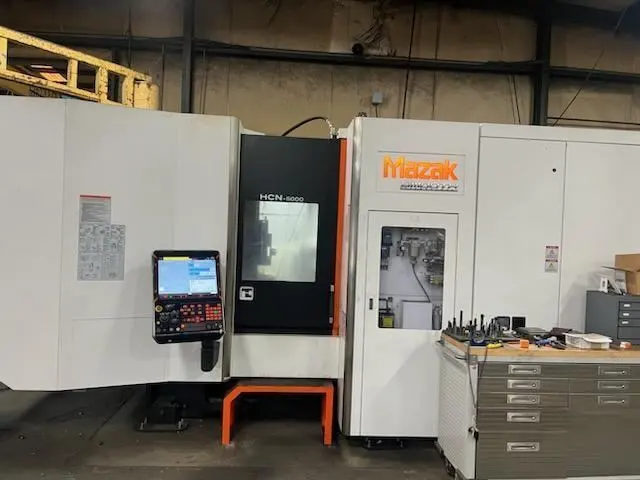

MAZAK HCN 5000/ 4 AXIS HMC WITH MAZATROL SMOOTH G CONTROL
MACHINING CENTERS, HORIZONTAL
MAZAK HCN 5000 WITH MAZATROL SMOOTH G CONTROL, 120 TOOLCHAIN MAGAZINE, CAT 40 SPINDLE, 1000 PSI CTS, ATLM, PART PROBE AND SO MUCH MORE.
| X-AXIS TRAVEL | 28.74" |
| Y-AXIS TRAVEL | 28.74" |
| Z-AXIS TRAVEL | 31.5" |
| SPINDLE TAPER | CAT 40 |
| SPINDLE DRIVE MOTOR | 40 hp |
| SPINDLE SPEED | 14000 rpm |
| MAX WORKPIECE SIZE | 39.37" |
| MAXIMUM WORKPIECE DIAMETER | 31.5" |
| RAPID TRAVERSE | 0 |
| TOOL CAPACITY (ATC) | 120 |
| NUMBER OF PALLETS | 2 |
| PALLET SIZE | 500 mm |
| PALLET SIZE (W) | 19.69" |
| PALLET SIZE (L) | 19.69" |
| Number of Axis | 4 |
| PALLET LOAD CAPACITY | 1543 lb |
| 4 AXIS PALLET TABLE INDEXING | N/C Contouring |
| PART PROBE | YES |
| TOOL PROBE/AUTO TOOL LENGTH MEASURE | Yes |
| HI-PRESSURE COOLANT SYSTEM | 1000 psi |
| CHIP CONVEYOR | Yes |
| Control | CNC |
| Dimensions | 194.02" x 96.22" x 110.75" |
| Weight | 27,720 LBS |
MAZATROL SMOOTH G CONTROL
19" COLOR LCD
EIA/ ISO PACKAGE
SMOOTH STANDARD SOFTARE
SD MEMORY I/F (1-PORT) + USB I/F (1-PORT?
MAZAK TAPPING/ BORIN TORNADO - MAZATROL
SMOOTH SYNCHRONIZED TAPPING
ATLM
G00 SLOPE CONSTANT
BACKGROUND TOOL PATH CHECK
INCH/ METRIC CONVERSION
1.0G CAPABILITY
TBR & MMS IN EIA/ ISO PROGRAM MACRO
SPINDLE MULTI-POINT ORIENT (M-CODE/ 1 DEG)
SMOOTH RESTART FUNCTION
ABSOLUTE POSITIONING SYSTEM
SAFETY SHIELD
120 TOOLCHAIN MAGAZINE/ CAT 40
TOOL ID MAGAZINE TOUCH PANEL
ATC AUTO RECOVERY
LNS MH 250 CHIP CONVEYOR - REAR DISPOSAL
SUPERFLOW V8M- 1000 PSI COOLANT-THRU
QUICK COOLANT STOP
NIAGARA COOLANT
FLOOD COOLANT SYSTEM
BIG-PLUS TOOL PROVISION
SPINDLE CHILLER UNIT
NC ROTARY TABLE
2 PALLET CHANGER/ BORE TAP PALLETS
UPGRADE TO 700KG (1543 LBS) MAX LOAD INC PALLET
APC AUTO RECOVERY
AUTO POWER ON/ OFF + WARM UP
OPERATOR DOOR INTERLOCK
PREP FOR MMS-B OPTICAL TYPE OMP60
RENISHAW OMP60M OPTICAL PROBE
COOLERS FOR BALL SCREW
ROLLER GUIDES
ELECTRICAL CONTROL BOX UL STANDARD (240V)
240V TO 480 MAIN BREAKER CONVERSION KIT
POWER TRANSFORMER FOR NORTH AMERICA
RELOCATION DEVICE
WINDOWS 8 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL
MIST COLLECTOR
MAX PROGRAM SIZE - 8MB
