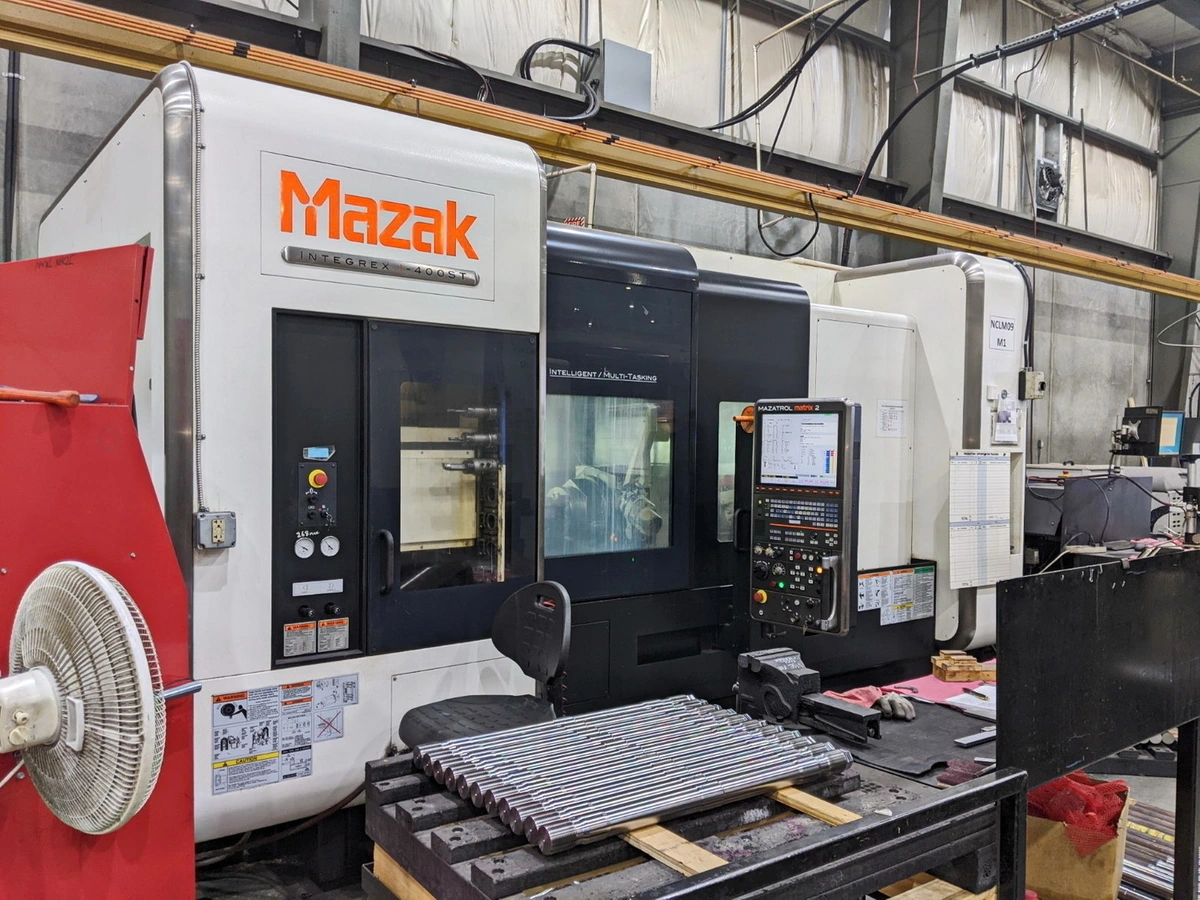

2011 MAZAK INTEGREX I-400ST MULTI-AXIS CNC LATHE
CNC LATHES MULTI AXIS
2011 MAZAK INTEGREX I-400ST MULTI-AXIS CNC LATHE, 12000 RPM MILLING SPINDLE, SUB-SPINDLE, B-AXIS, Y-AXIS, 12" KITAGAWA HYDRAULIC CHUCKS, CHIP CONVEYOR
| Maximum Swing | 26.9" |
| Max Turning Diameter | 26.9" |
| Main Spindle Bore/Max Bar Capacity | 4.4"/ 4.0" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Swing Over Cross Slide | 25.9" |
| Maximum Cutting Length | 59.8" |
| X-Axis Travel (X1, X2, X3) | 24.21 |
| Z-Axis Travel (Z1, Z2, Z3) | 62.4 |
| Y-Axis Travel (Y1, Y2, Y3) | ±4.92″ |
| C-Axis Indexing (1, 2) | 0.0001° |
| W-Axis Travel Sub Spindle | 61.96 in |
| Main Spindle Chuck Size | 12" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 4.4" |
| Main Spindle Maximum Bar Work | 4" |
| Main Spindle Speed | 3,300 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40 |
| Sub Spindle/2nd Spindle Chuck Size | 10 |
| Sub Spindle/2nd Spindle Bore Size | 3.58 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 4,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 30 HP..... MAX RPM (MILLING TOOL) 12,000 RPM |
| ATC Magazine Capacity | 36 |
| Number of Turrets | 1 |
| Turret Tool Positions 1, 2 | 9 |
| Turret Type | KM-63 |
| B-Axis Travel | +210° ~ -30° |
| B-Axis Head Indexing | 240 deg |
| B-Axis Milling Spindle Speed | 12000 rpm |
| B-Axis Milling Spindle Horse Power | 30 |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Measurement Lower Turret | Yes |
| Multi Tap Transformer | Yes |
| Rapid Traverse, X-Axis | 1969 |
| Rapid Traverse, Y-Axis | 1575 |
| Rapid Traverse, Z-Axis | 1969 |
| Control | CNC |
| Dimensions | 205" X 110" X 107" |
| Weight | 37,840 lb |
MAZATROL MATRIX CONTROL
FULL 5-AXIS
MILLING SPINDLE
B-AXIS
Y-AXIS
C-AXIS
(2) 12" KITAGAWA HYDRAULIC CHUCKS
CHIP CONVEYOR
