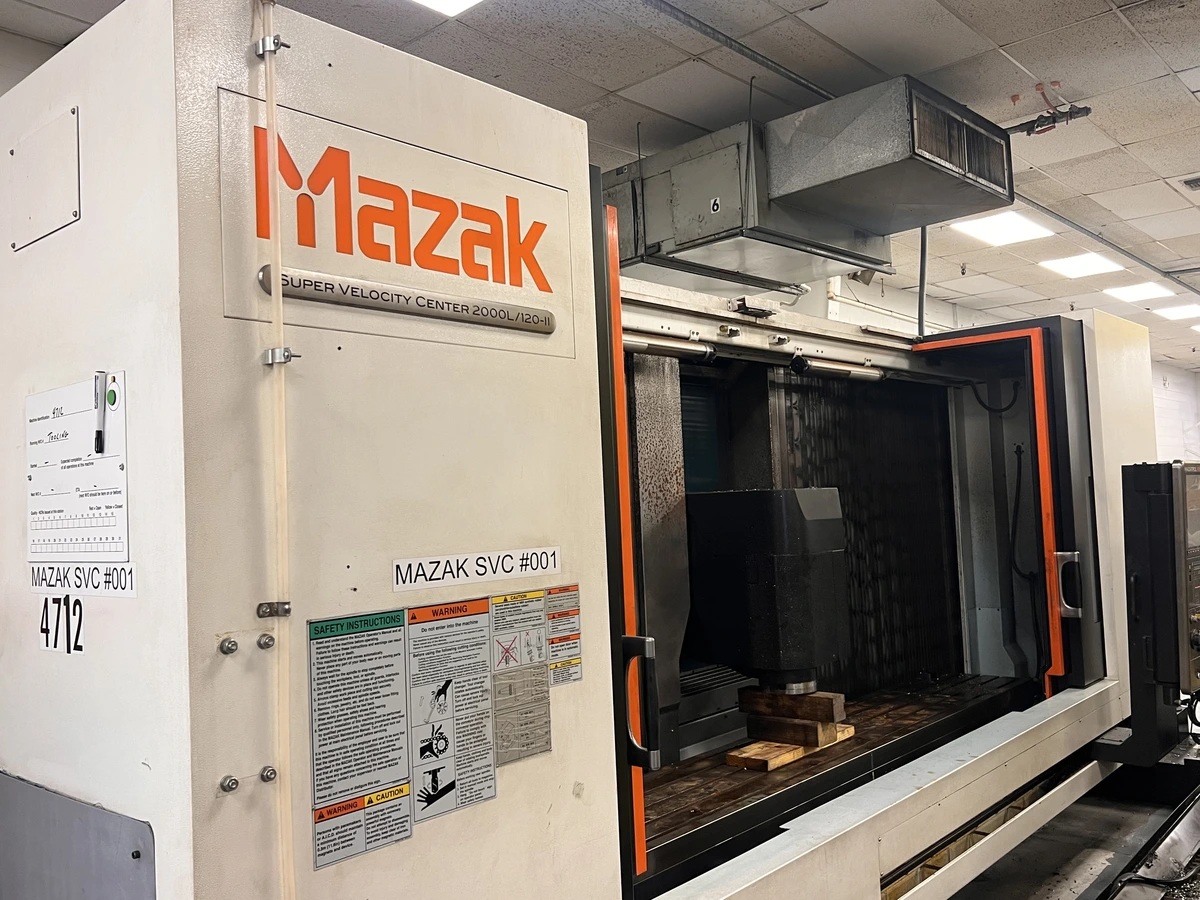

2013 Mazak SVC 2000L/120
MACHINING CENTERS, VERTICAL
MAZAK SVC 2000/ 120 HAS A MATRIX 2 CONTROL, CHIP CONVEYOR, SYNCH-TAPING, ATLM, 213 PSI CTS,
PREPARATION FOR MMS-B OPTICAL OMP-60, AND 30 STATION ATC
| X Travel | 120" |
| Y Travel | 20.08" |
| Z Travel | 20.08" |
| Spindle Speed | 15000 rpm |
| Tool Capacity (ATC) | 30 |
| Table Size (W) | 20.08" |
| Table Size (L) | 133.86" |
| Main Spindle Motor | 30 hp |
| Spindle Taper | CAT 40 |
| Spindle Nose To Table Top | 7.1″ ~ 27.2" |
| Coolant Thru | Yes |
| Coolant Thru High Pressure | Yes |
| Hi Pressure Coolant System | 213 psi |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Control | CNC (Mazatrol Matrix 2) |
| Dimensions | 235.63″ × 145.98″ x 102.36″ |
| Weight | 28,660 lbs. |
MAZATROL MATRIX 2
ADDITIONAL EIA/ISO FUNCTIONS
CHIP CONVEYOR
SYNCHRONIZED TAPPING
DUAL CHIP AUGERS
INCH/METRIC CONVERSION
ABSOLUTE POSITIONING SYS Y&Z AXES
SCALE FEEDBACK SYSTEM ON X-AXIS
COLUMN 7.1″ ~ 27.2
AUTO TOOL LENGTH MEASUREMENT AND BREAKAGE DET.
SHOWA MIST COLLECTOR
COVER COOLANT
30-STATION TOOL CHANGER
PREP FOR COOLANT-THRU SPINDLE (SUPER FLOW)
213 HI-PRESSURE COOLANT THROUGH SPINDLE
COOLERS FOR BALLSCREWS X&Z AXES
HIGH-SPEED RAPIDS
PREPARATION FOR MMS-B OPTICAL OMP-60
RELOCATION DEVICE
MANUAL PULSE GENERATOR
WINDOWS 7 OPERATING SYS
MT CONNECT PREPARATION
MULTI-TAP TRANSFORMER FOR NORTH AMERICAN POWER
