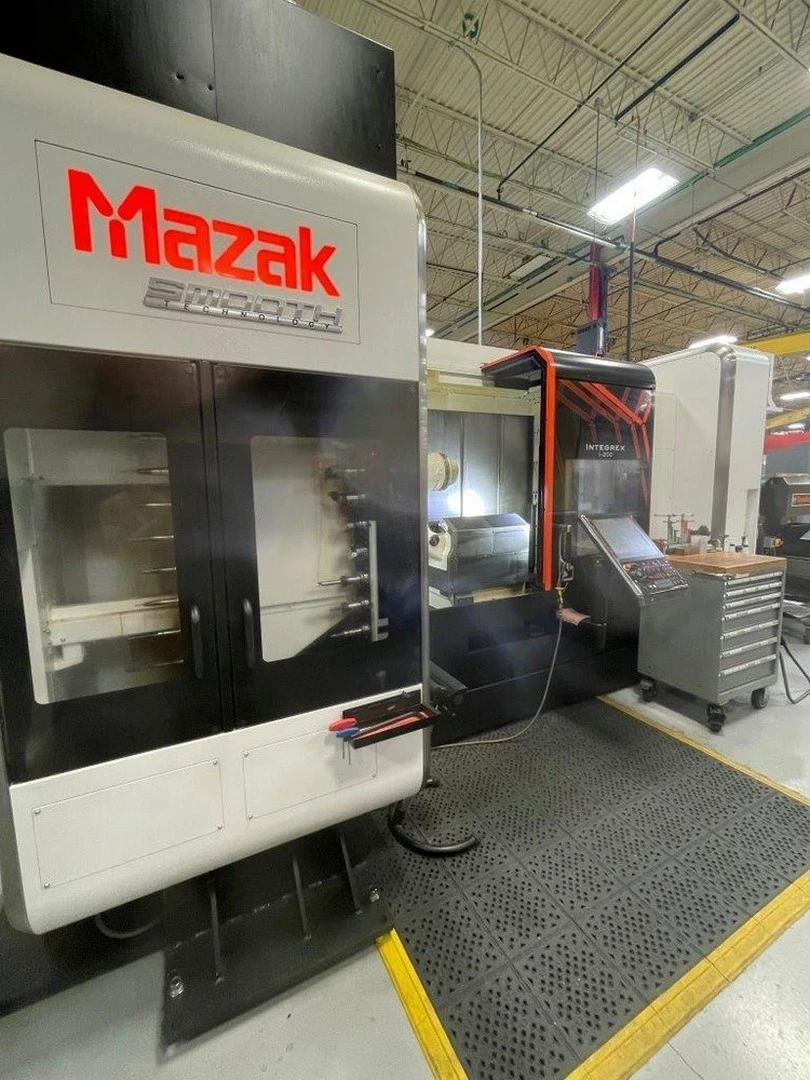

2018 MAZAK INTEGREX I-200-1500U
CNC LATHES MULTI AXIS
2018 INTEGREX i-200/ 1500 HAS A MAZATROL SMOOTH X CONTROL, 110 POSITION ATC - HSK 63 SPINDLE TAPER, MAZAK SUPER FLOW V8M 1000PSI, RENISHAW RMP60/600 PROBE, MIST COLLECTOR, TAILSTOCK, AND CONSEP 2000 CHIP CONVEYOR.
| Maximum Swing | 25.91" |
| Max Turning Diameter | 25.91" |
| Main Spindle Bore/Max Bar Capacity | 2.99/ 2.56 |
| Tail Stock/Sub Spindle | TAILSTOCK |
| X-Axis Travel (X1, X2, X3) | 24.21 |
| Z-Axis Travel (Z1, Z2, Z3) | 62.4 |
| Y-Axis Travel (Y1, Y2, Y3) | 10.24 |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.99" |
| Main Spindle Maximum Bar Work | 2.56" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| ATC Magazine Capacity | 110 |
| B Axis Rotary Tool Spindle Speed | 20000 rpm |
| B-Axis Rotary Tool Spindle Horsepower | 20 hp |
| Chip Conveyor | Yes |
| Rapid Traverse, X-Axis | 1969 |
| Rapid Traverse, Y-Axis | 1575 |
| Rapid Traverse, Z-Axis | 1969 |
| Control | CNC (MAZATROL SMOOTH X) |
MAZATROL SMOOTH X CONTROL
8" CHUCK NOT INCLUDED
HSK 63 SPINDLE TAPER
MAZAK SUPER FLOW V8M 1000PSI
RENISHAW RMP60/600 PROBE
MIST COLLECTOR
TAILSTOCK
A2-6 SPINDLE NOSE
CONCEP 2000 CHIP CONVEYOR
