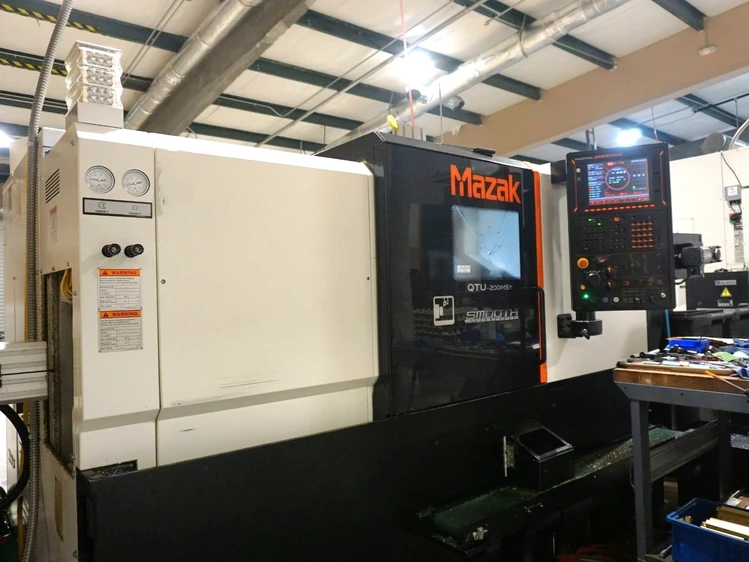

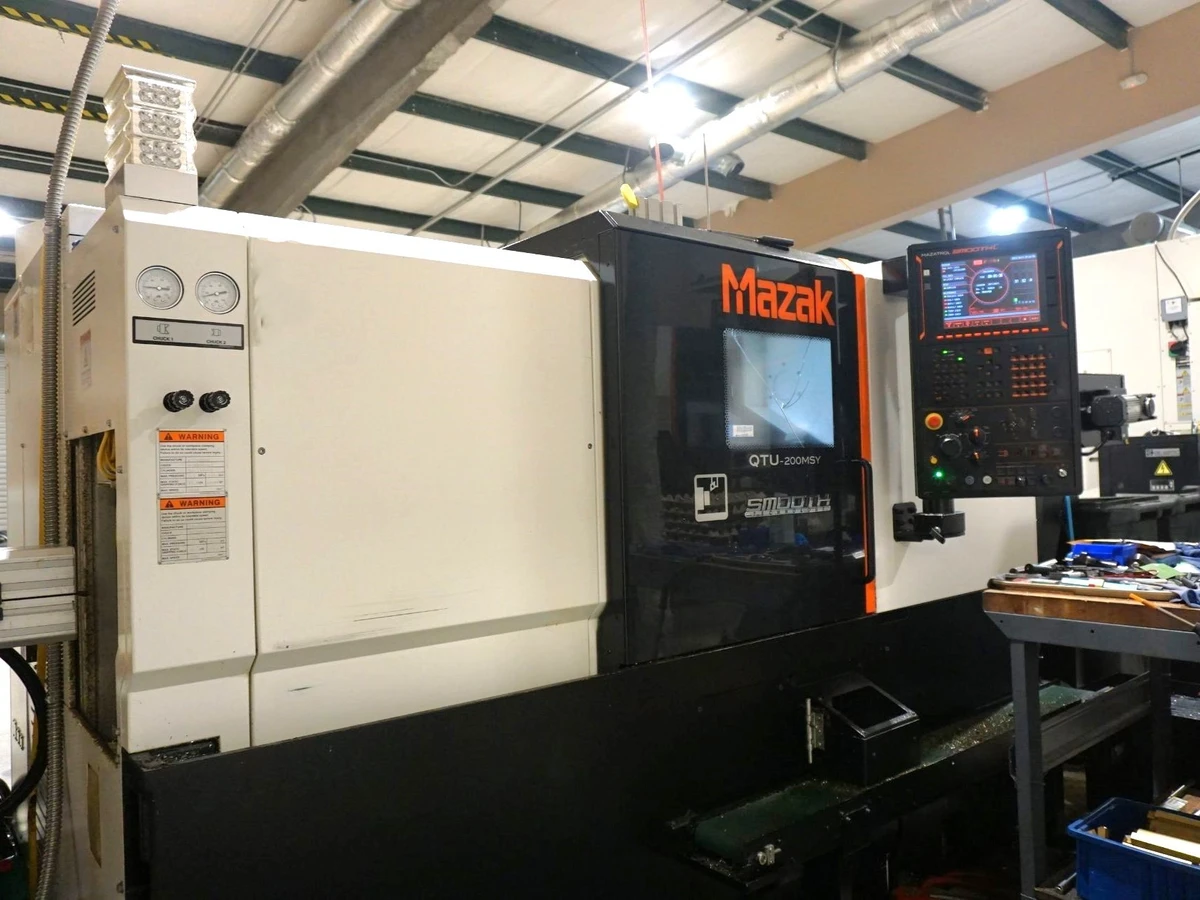

2017 MAZAK QTU 200MSY - MILLING/ SUB-SPINDLE AND Y-AXIS
CNC LATHES MULTI AXIS
2017 MAZAK QTU 200MSY WITH MAZATROL SMOOTH-C CNC CONTROL, 8" KITAGAWA 3-JAW CHUCK (MAIN SPINDLE), 6" KITAGAWA 3-JAW CHUCK (SUB SPINDLE), 12-POSITION TURRET, C-AXIS MAIN & SUB SPINDLES, LIVE MILLING, TOOL SETTER, MAZAK SUPERFLOW S8/1000 HIGH-PRESSURE COOLANT, AND JORGENSON CHIP CONVEYOR.
| Maximum Swing | 27.4" |
| Max Turning Diameter | 13.5" |
| Main Spindle Bore/Max Bar Capacity | 2.06"/ 1.62" |
| Tail Stock/Sub Spindle | SUB SPINDLE |
| Maximum Cutting Length | 22.49" |
| X-Axis Travel (X1, X2, X3) | 8.5" |
| Z-Axis Travel (Z1, Z2, Z3) | 23.75" |
| Y-Axis Travel (Y1, Y2, Y3) | 4" |
| C-Axis Indexing (1, 2) | 0.0001 DEGREES/ 0.0001 DEGREES |
| W-Axis Travel Sub Spindle | 22.12 in |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.06" |
| Main Spindle Maximum Bar Work | 1.65" |
| Main Spindle Speed | 6,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 20 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 1.65 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 20 |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4500 |
| Turret Rotary Tool Horse Power 1, 2 | 7.3 |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| High Pressure Coolant System (PSI) | 1000 |
| Rapid Traverse, X-Axis | 1181 |
| Rapid Traverse, Y-Axis | 394 |
| Rapid Traverse, Z-Axis | 1417 |
| Control | CNC (MAZATROL SMOOTH C) |
| Dimensions | 102" X 66.5" X 67.9 |
| Weight | 12,125 LBS. |
MAZATROL SMOOTH-C CNC CONTROL
8" KITAGAWA 3-JAW CHUCK (MAIN SPINDLE)
6" KITAGAWA 3-JAW CHUCK (SUB SPINDLE)
12-POSITION TURRET
C-AXIS MAIN & SUB SPINDLES
LIVE MILLING
TOOL SETTER
MAZAK SUPERFLOW S8/1000 HIGH-PRESSURE COOLANT
JORGENSON CHIP CONVEYOR
