2022 DOOSAN PUMA V8300
VTL VERTICAL CNC
.jpg)
.jpg)
.jpg)
.jpg)

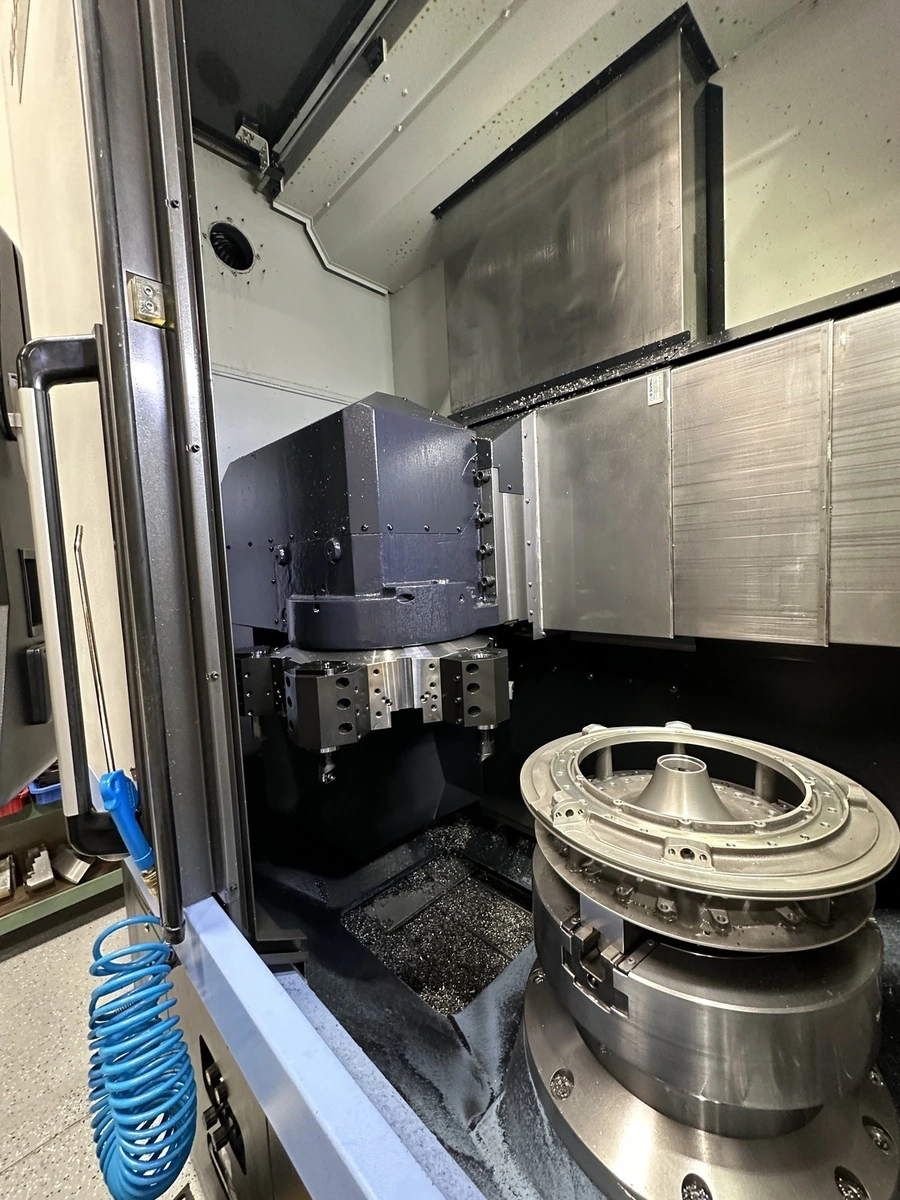

2022 DOOSAN PUMA V8300 VTL WITH SAMCHULLY 18" HC 3-JAW CHUCK, RENISHAW TOOL SETTER,
145 PSI COOLANT PUMP, CHUCK AIR BLOW RETROFIT, TURBO REAR DISCHARGE CHIP CONVEYOR, AND MP 1200 CFM MIST COLLECTOR
| Table Dia | 32.68" |
| Table Load Capacity | 1,918 lb |
| Swing | 36.2" |
| Number of Ranges | 2 |
| X-Axis Travel | 19.48 |
| Z-Axis Travel | 31" |
| Rapid Traverse X, Z | 787/ 787 |
| Table Speed | 2,000 RPM |
| Control | CNC (DOOSAN FANUC i-SERIES) |
| Dimensions | 78.9"x112.5" floor space |
| Weight | 20,270 LBS |
SWING OVER BED 36.2"
SWING OVER CARRIAGE 29.1"
MAXIMUM TURNING DIAMETER. 32.68"
MAXIMUM TURNING LENGTH. 30.7"
TABLE LOAD 1918 LBS
SPINDLE:
SPINDLE SPEED 2000 RPM
SPINDLE NOSE A2-11
SPINDLE BEARING DIAMETER (ID) 6.3"
SPEED RANGES 2
AC SPINDLE MOTOR (30 MIN. RATING) MAXIMUM SPINDLE TORQUE (30 MIN. RATING)
BED, SADDLE & CROSS SLIDE:
X-AXIS GUIDE WAY SPAN 16.3"
Z AXIS GUIDE WAY SPAN 25.6"
X-AXIS BALL SCREW DIAMETER 1.57"
Z AXIS BALL SCREW DIAMETER 1.97"
SAMCHULLY 18" HC 3-JAW CHUCK
RENISHAW TOOL SETTER
145 PSI COOLANT PUMP
CHUCK AIR BLOW RETROFIT
TURBO REAR DISCHARGE CHIP CONVEYOR
MP 1200 CFM MIST COLLECTOR
ADDITIONAL M-CODES
STANDARD TOOLING PACKAGE
