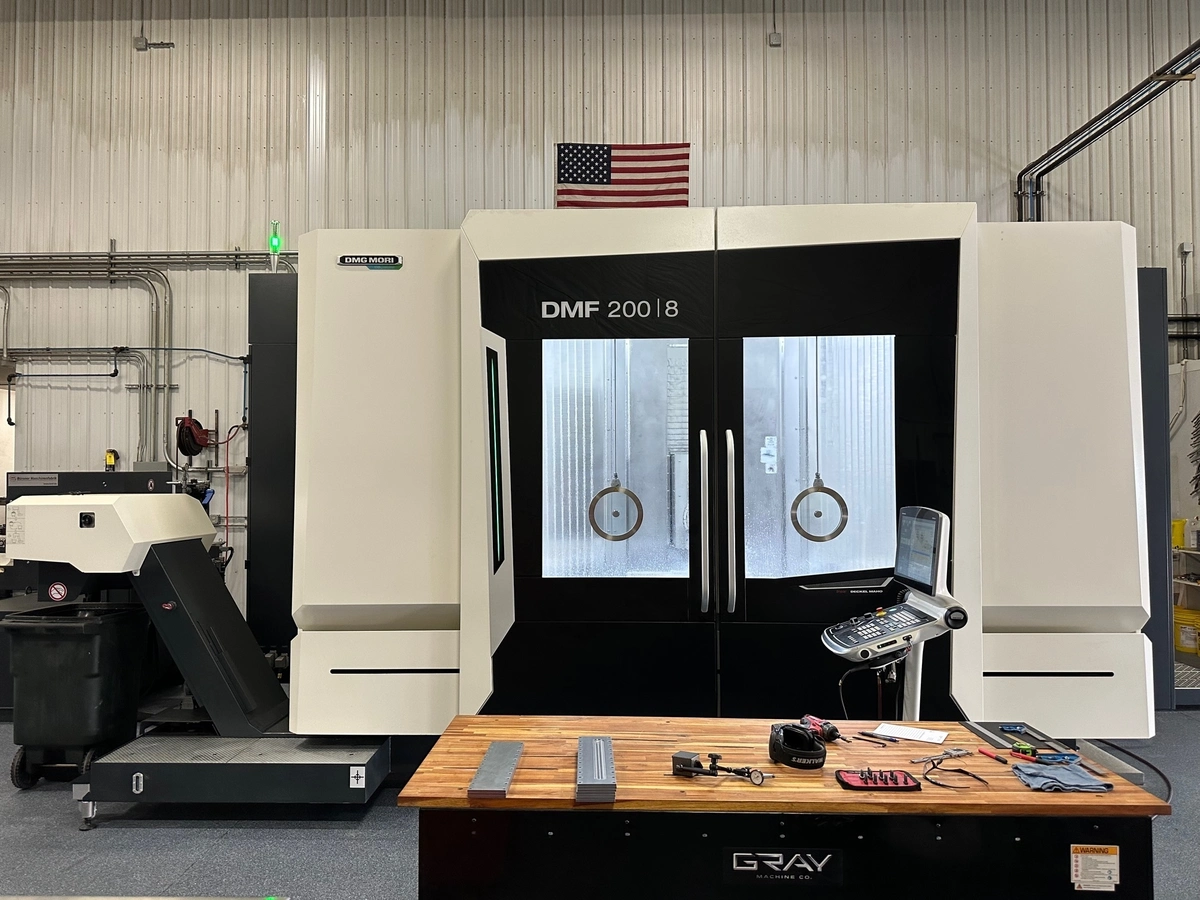

2021 DMG MORI DMF 200|8 linear - 5-Axis Milling
MACHINING CENTERS, VERTICAL
| X Travel | 78.74" |
| Y Travel | 31.49" |
| Z Travel | 33.46" |
| Spindle Speed | 20000 rpm |
| Tool Capacity (ATC) | 90 |
| Table Size (W) | 90" |
| Table Size (L) | 33" |
| Main Spindle Motor | 4035 hp |
| Spindle Taper | HSK 63 |
| 5 Axis Programmable Axis's | Full 5 Axis's Contouring |
| Coolant Thru | Yes |
| Coolant Thru High Pressure | Yes |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| B-AXIS (Table Swivel) | 0 |
| Control | CNC (CELOS with Siemens 840D SLIMline CNC Control) |
Installed May 2023
5 Axis Simultaneous
Traveling Column
CELOS with Siemens 840D Control
Rigid Table with Rotary Axis (Center)
Dynamic Package for DMF 200 Linear
Infrared Measuring Probe PP60 Optical
Chip Flushing for Work Ara
Oil Mist Separator
Air Blast Through Spindle Center
3D Quickset
Blum Tool Laser Measuring
High Pressure Coolant
Chip Conveyor
