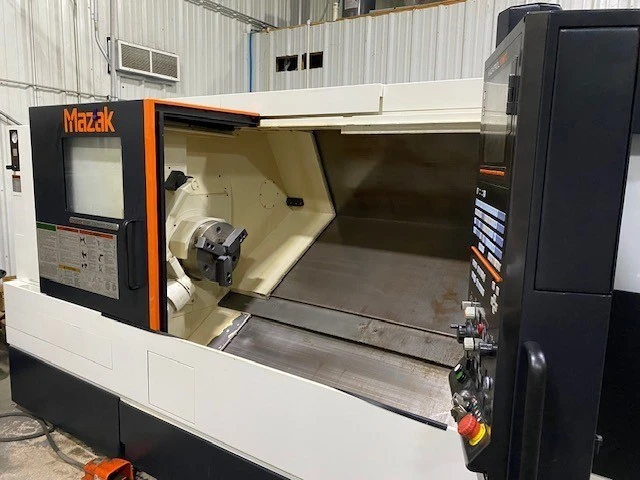

2014 MAZAK QTS 350
CNC LATHES 2 AXIS
THIS QTS 350 HAS A SMART CONTROL, 12" HYDRAULIC CHUCK WITH 4" BAR CAPACITY, ATLM, 118 PSI CTS AND TAILSTOCK.
| Max. Swing | 28.3" |
| Max Turning Diameter | 16.5" |
| Spindle Bore/Max Bar Capacity | 4.4"/ 4.0" |
| Z Travel | 53.13" |
| X Travel | 10.38" |
| Machining Length | 48.67" |
| Chuck Size | 12" |
| Chuck Type | Hydraullic |
| Spindle Motor | 40 hp |
| Spindle Speeds (RPM) | 3300 |
| Spindle Bore | 4.4 in |
| Max. Bar Capacity | 4" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| High Pressure Coolant System | 118 PSI |
| Chip Conveyor | Yes |
| Control | CNC (MAZATROL SMART) |
| Dimensions | 150" X 75" X 75" |
| Weight | 15,200 LBS |
EQUIPPED WITH:
MAZATROL SMART CONTROL
USER MACRO
EIA/ISO CODE INPUT
SEQUENCE NUMBER COMPARISON STOP FUNCTION
ABSOLUTE POSITIONING
ATLM
KITAGAWA BB-212A11 WITH 4″ CAP
CHUCK OPEN/CLOSE CONFIRMATION
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR, HINGE
118 PSI
